Item No.: LX-1203
Standard: IEC 61032
Made in China
E-mail: [email protected]
Product description: Test Probe 12 complies with the requirements of IEC 61032 Figure 8 standard and is used to verify whether live parts or mechanical parts can be accessed.

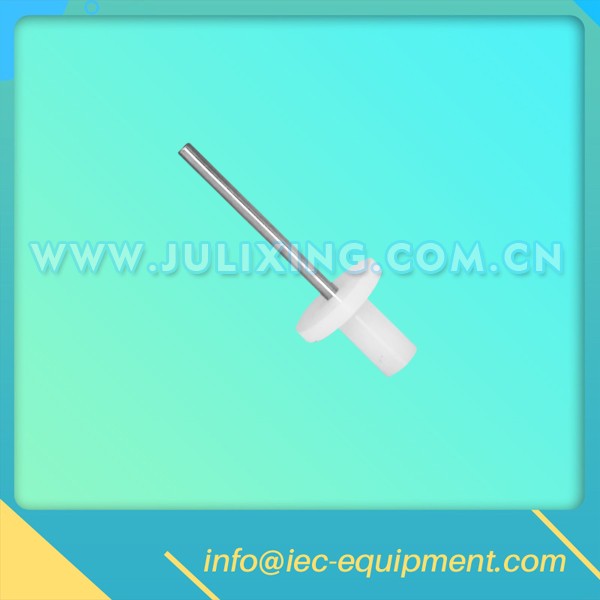

Test Probe 12 of IEC 61032
Specification:
Test Probe 12 complies with the requirements of IEC 61032 Figure 8 standard and is used to verify whether live parts or mechanical parts can be accessed.
Technical parameters:
1) Pin Length: 50 mm
2) Pin Diameter: 4 mm
3) Circular-baffle Diameter: 25 mm
4) Circular-baffle Thickness: 4 mm
5) Handle Diameter: 10 mm
6) Handle Length: 20 mm
7) According to IEC 61032:1997 Figure 8 (Test Probe 12).
This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
