50mm Sphere Test Probe A with Baffle and Handle

Specification:

IP1X Probe A /Test Probe A
1, According to: IEC 61032:1997 / IEC 60529:2001.
2, Test Probe A is necessary appliance for household and similar electrical appliance of against electric shock protection test.

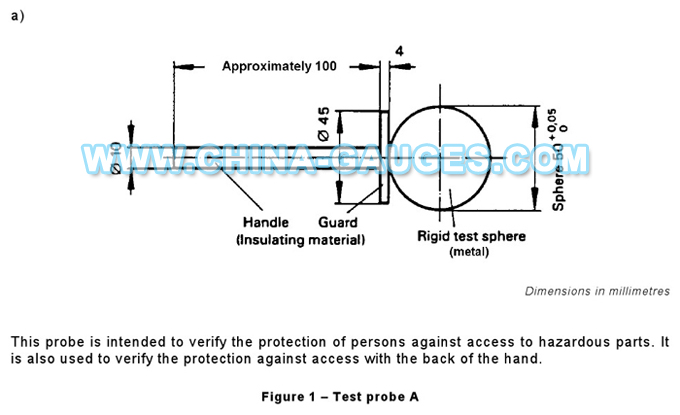

Technical Parameters:
1. Ball Diameter: 50 mm
2. Baffle Plate Diameter: 45 mm
3. Baffle Plate Thickness: 4 mm
4. Handle Diameter: 10 mm
5. Handle Length: 100 mm
6. According to IEC 61032 figure 1 (the Test probe A), table 6 IEC 60529 the first characteristics (1)

Company Information

SHENZHEN JULIXING INSTRUMENTS CO., LTD. is China Leader Manufacturer & Exporter of Testing Equipment Supplier, we are specialized in manufacturing special, custom built, test and measuring equipment for products testing as per international norms and offering calibration services and related information. Our products and services are used by research & development establishments, test laboratories, defense establishments, government institutions & manufacturing industries to fulfill the clients' requirements.


Main Products: Test Probe，IEC Testing Equipment，IEC Gauges，IEC Testing，IP Tester，IEC 61032 Test Probe B, Test Probe 13, Test Probe 18, Test Probe 19, Test Probe 41, Test Probe 11, IEC 60529 IP Rating, IEC 61032 Test Finger, IEC 61032 Probe, IEC 61032 Figure 2, Universal Impact Spring Hammer, IEC 60529 Testing, Test Finger, Test Probe Pin, Test Finger Probe, IEC Test Probe, UL Test Probe, IEC Gauges, IPX3 IPX4 Spray Nozzle, IPX5 Jet Nozzle, E27 Go No Go Gauges, E14 Go No Go Gauges, E39 Go No Go Gauges, E40 Go No Go Gauges, E26 Go No Go Gauges, E12 Go No Go Gauges, G5 Go No Go Gauges, G13 Go No Go Gauges, IEC 62368 Prodcuts, IEC 61032 Products, IEC 60061-3 Products, IEC 60529 Products, IEC 61010 Products, IEC 60601 Products, IEC 60950 Products, IEC 60335 Products and more.


If you require equipment to test products such as home appliances, electrical accessories like switches, sockets, connectors, etc. industrial & road lighting luminaires, automobile lighting systems or related categories, we can provide the solutions you need.
